EASEMED CO₂ Insufflator 40L with Digital LED Display | Microprocessor Controlled Laparoscopic CO₂ Insufflation System | Medical CO₂ Insufflator with Air Mode
EASEMED CO₂ Insufflator 40L with Digital LED Display | Microprocessor Controlled Laparoscopic CO₂ Insufflation System | Medical CO₂ Insufflator with Air Mode
Couldn't load pickup availability

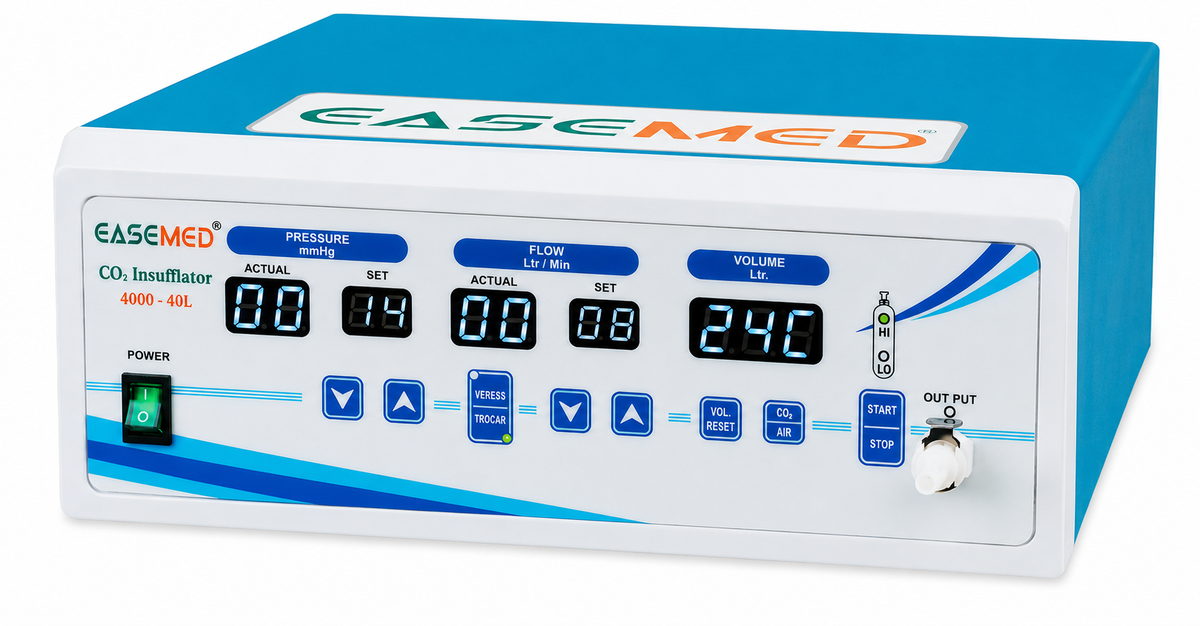

EASEMED CO₂ Insufflator 40L With Air Mode
The EASEMED CO₂ Insufflator 40L is a high-performance, microprocessor-controlled laparoscopic insufflation system designed for advanced minimally invasive surgical procedures. With an adjustable flow rate of 1–40 L/min, intelligent pressure regulation, and a bright digital LED display, the unit delivers stable and accurate CO₂ insufflation for safe pneumoperitoneum management.
Engineered for precision and reliability, the insufflator continuously monitors pressure, flow, and gas volume while providing automatic safety protection against over-pressure and gas leakage. Its intuitive control panel, universal compatibility, and compact design make it an excellent choice for hospitals, laparoscopic surgery centers, and operating theatres.
The EASEMED CO₂ Insufflator 40L ensures smooth gas delivery, dependable performance, and enhanced patient safety throughout complex laparoscopic procedures.

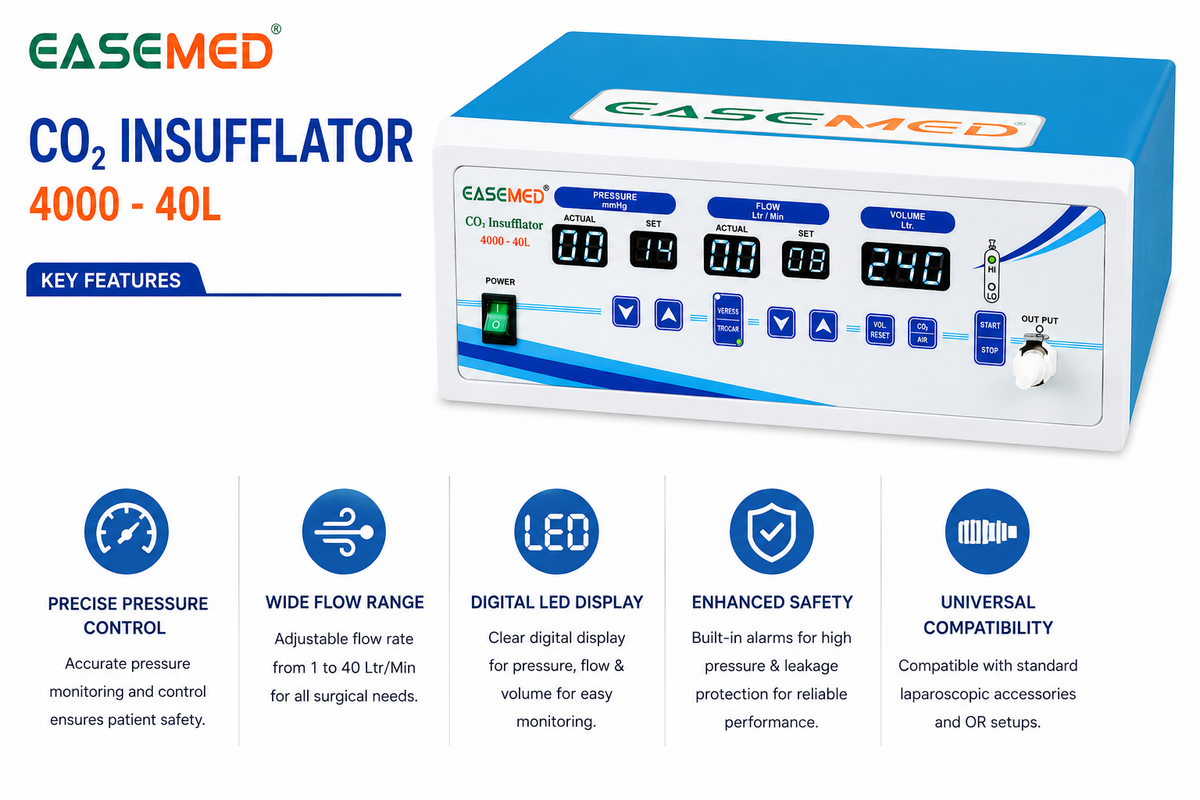

Product Highlights
- Microprocessor Controlled CO₂ Insufflator
- Adjustable Flow Rate: 1–40 L/min
- Digital Pressure & Flow Monitoring
- Bright LED Digital Display
- Precise Pneumoperitoneum Control
- Real-Time Pressure Monitoring
- Gas Volume Display (0–999 Litres)
- High Flow & Low Flow Operating Modes
- Universal Output Port
- Over Pressure Relief Valve
- Audible & Visual Alarm System
- Gas Leakage Protection
- High & Low Pressure Alarm
- Compact, User-Friendly Design
- Reliable Continuous Performance
- Compatible with Standard Laparoscopic Accessories

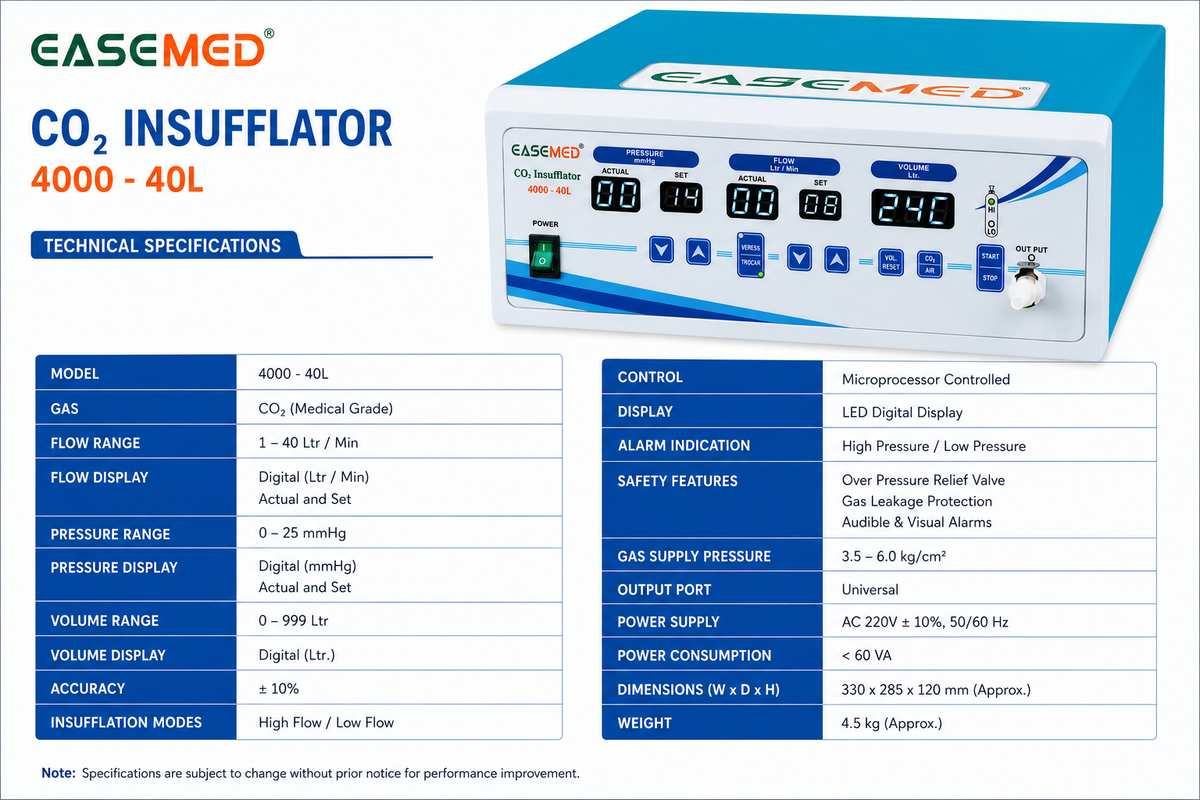

Technical Specifications
| Specification | Details |
|---|---|
| Product Name | EASEMED CO₂ Insufflator 40L |
| Model | 4000–40L |
| Technology | Microprocessor Controlled |
| Gas Type | Medical Grade CO₂ |
| Flow Range | 1–40 L/min |
| Pressure Range | 0–25 mmHg |
| Volume Range | 0–999 Litres |
| Display | LED Digital Display |
| Pressure Display | Actual & Set |
| Flow Display | Actual & Set |
| Insufflation Modes | High Flow / Low Flow |
| Alarm | High Pressure / Low Pressure |
| Safety Features | Over Pressure Relief Valve, Gas Leakage Protection, Audible & Visual Alarm |
| Gas Supply Pressure | 3.5–6.0 kg/cm² |
| Output Port | Universal |
| Power Supply | AC 220V ±10%, 50/60Hz |
| Power Consumption | <60 VA |
| Dimensions | Approx. 330 × 285 × 120 mm |
| Weight | Approx. 4.5 kg |
Applications
- Laparoscopic Surgery
- General Surgery
- Gynecology
- Urology
- Bariatric Surgery
- Pediatric Surgery
- Thoracic Surgery
- Surgical Training Institutes
- Hospitals & Operating Rooms

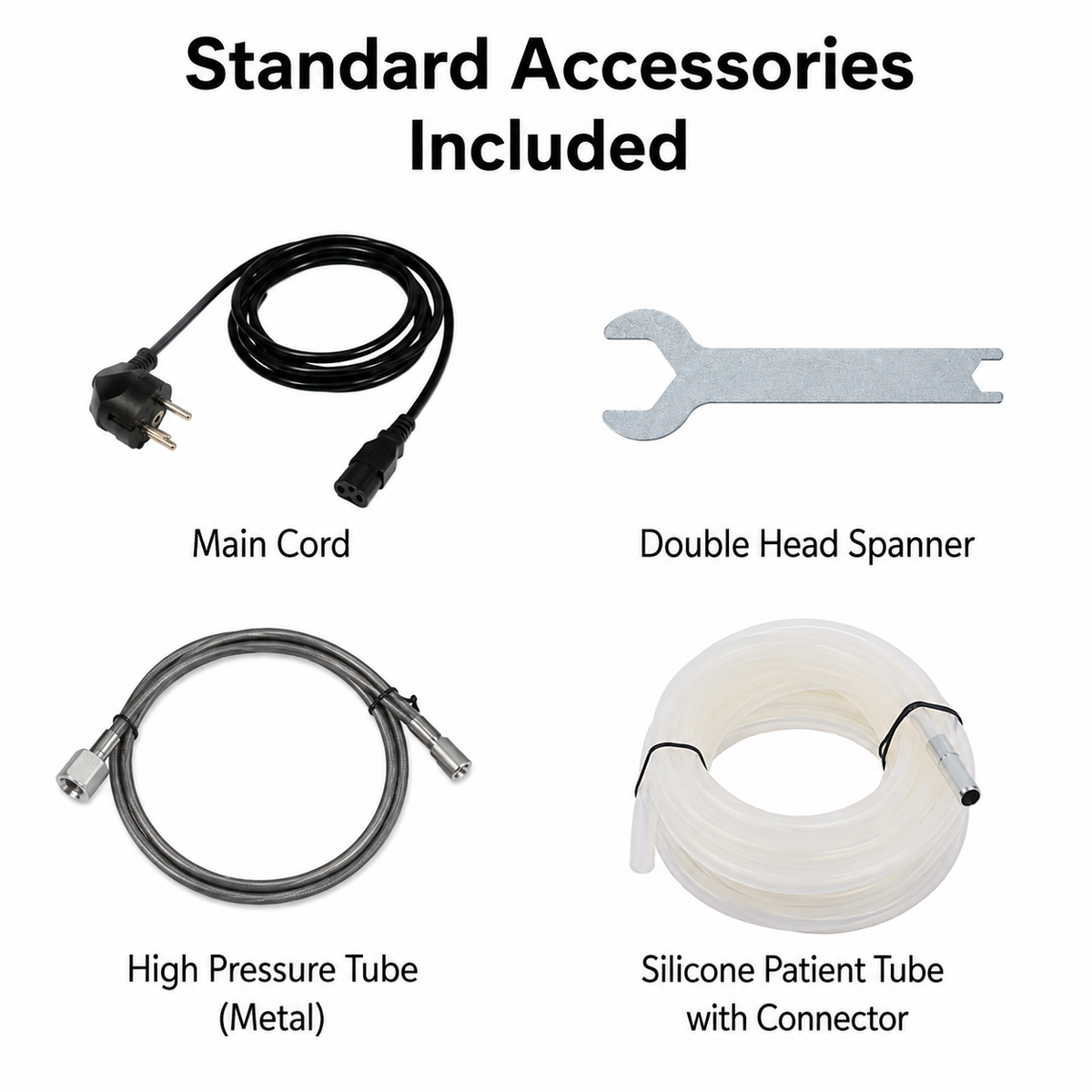

Standard Accessories Included
- EASEMED CO₂ Insufflator 40L Unit
- High Pressure Tube (Metal)
- Silicone Patient Tube with Connector
- Double Head Spanner
- Mains Cord

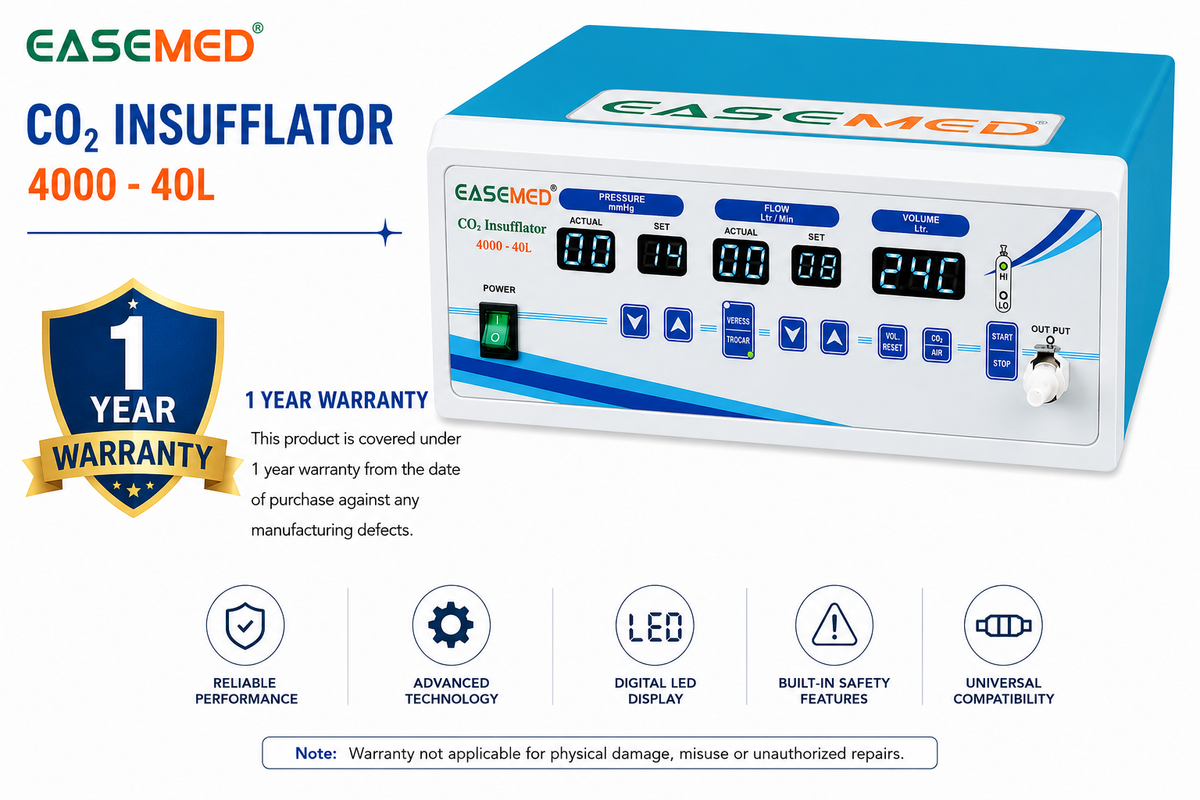

Warranty
1 Year Manufacturer Warranty
The EASEMED CO₂ Insufflator 40L comes with a 1-Year Manufacturer Warranty covering manufacturing defects under normal operating conditions.
Warranty Includes
- Manufacturing defect coverage
- Technical support
- Service assistance
- Genuine replacement parts (where applicable)
Warranty Exclusions
- Physical or accidental damage
- Improper installation or misuse
- Unauthorized repairs or modifications
- Consumables and accessories
