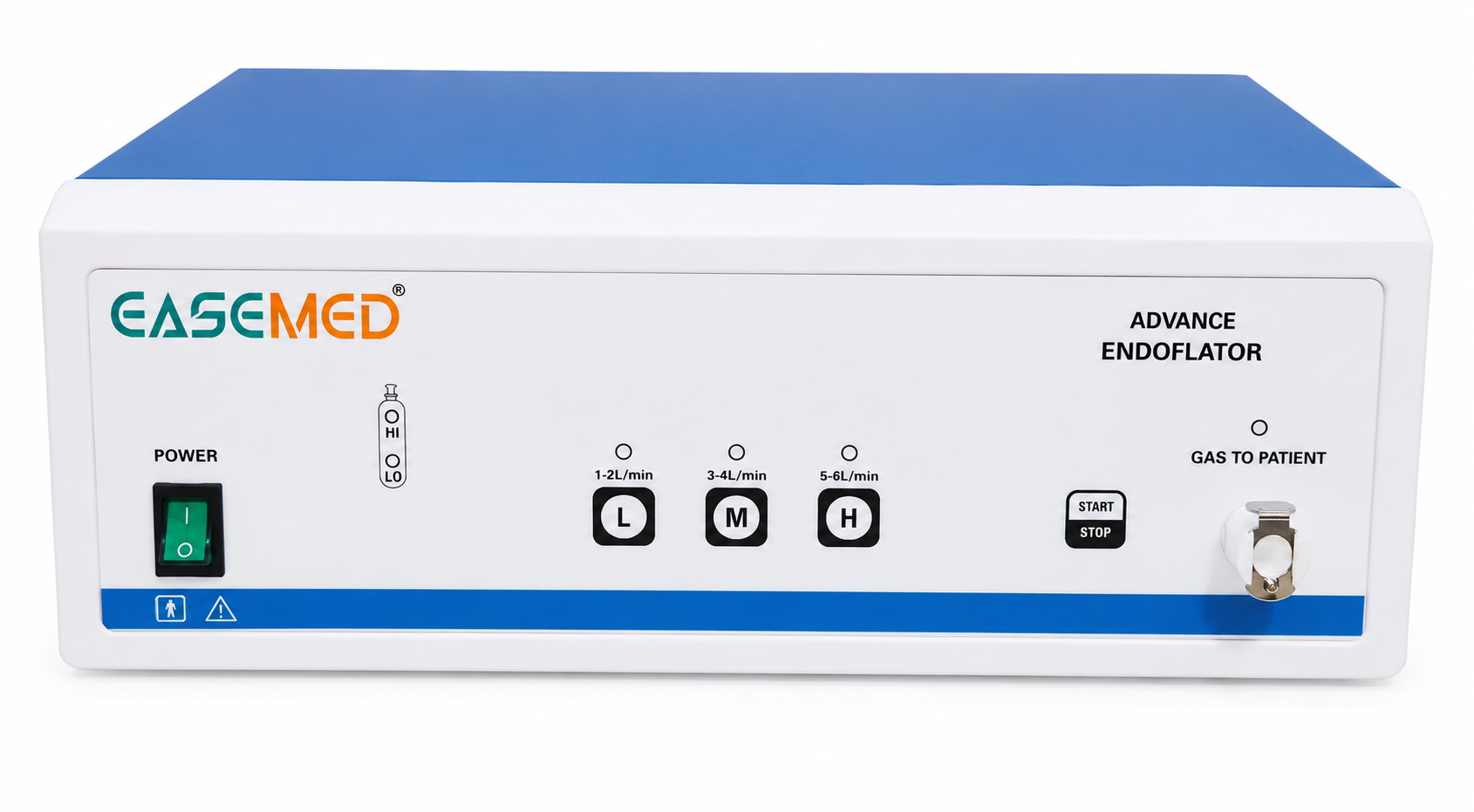

EASEMED Advance Endoflator CO₂ Insufflator with Inbuilt Gas Warmer
The EASEMED Advance Endoflator CO₂ Insufflator is a precision-engineered laparoscopic insufflation system designed to provide safe, stable, and controlled carbon dioxide delivery during minimally invasive surgical procedures. Equipped with an advanced microcontroller, inbuilt gas warming technology, and three selectable flow modes, the unit ensures reliable pneumoperitoneum while enhancing patient comfort and surgical efficiency.
Designed for laparoscopic surgery, endoscopic procedures, and endoscopic vessel harvesting, this compact insufflator offers accurate pressure regulation, universal compatibility, and multiple built-in safety features for dependable operation in hospitals, surgical centers, and operating rooms.

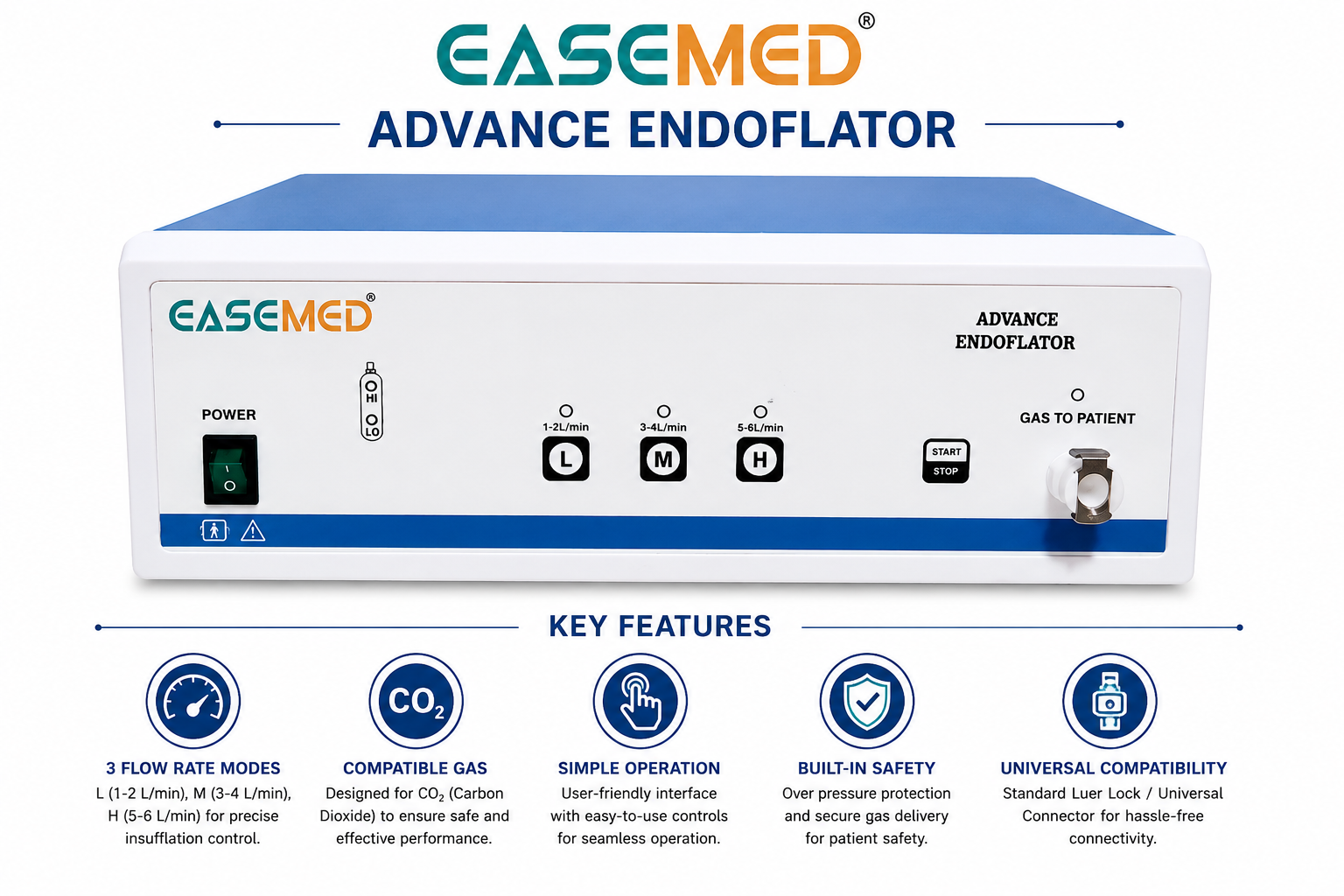

Key Features
- Microcontroller Controlled CO₂ Insufflation System
- Inbuilt CO₂ Gas Warmer for improved patient comfort
- Three Selectable Flow Modes (Low, Medium & High)
- Stable and Accurate Pressure Regulation
- Electronic Digital Control System
- Compatible with Standard Medical CO₂ Cylinders
- Universal Luer Lock Gas Outlet
- Automatic Pressure Release Protection
- Audio-Visual Alarm System
- Compact, Lightweight & User-Friendly Design
- Reliable Performance for Continuous Surgical Use
- Suitable for Laparoscopic and Endoscopic Procedures

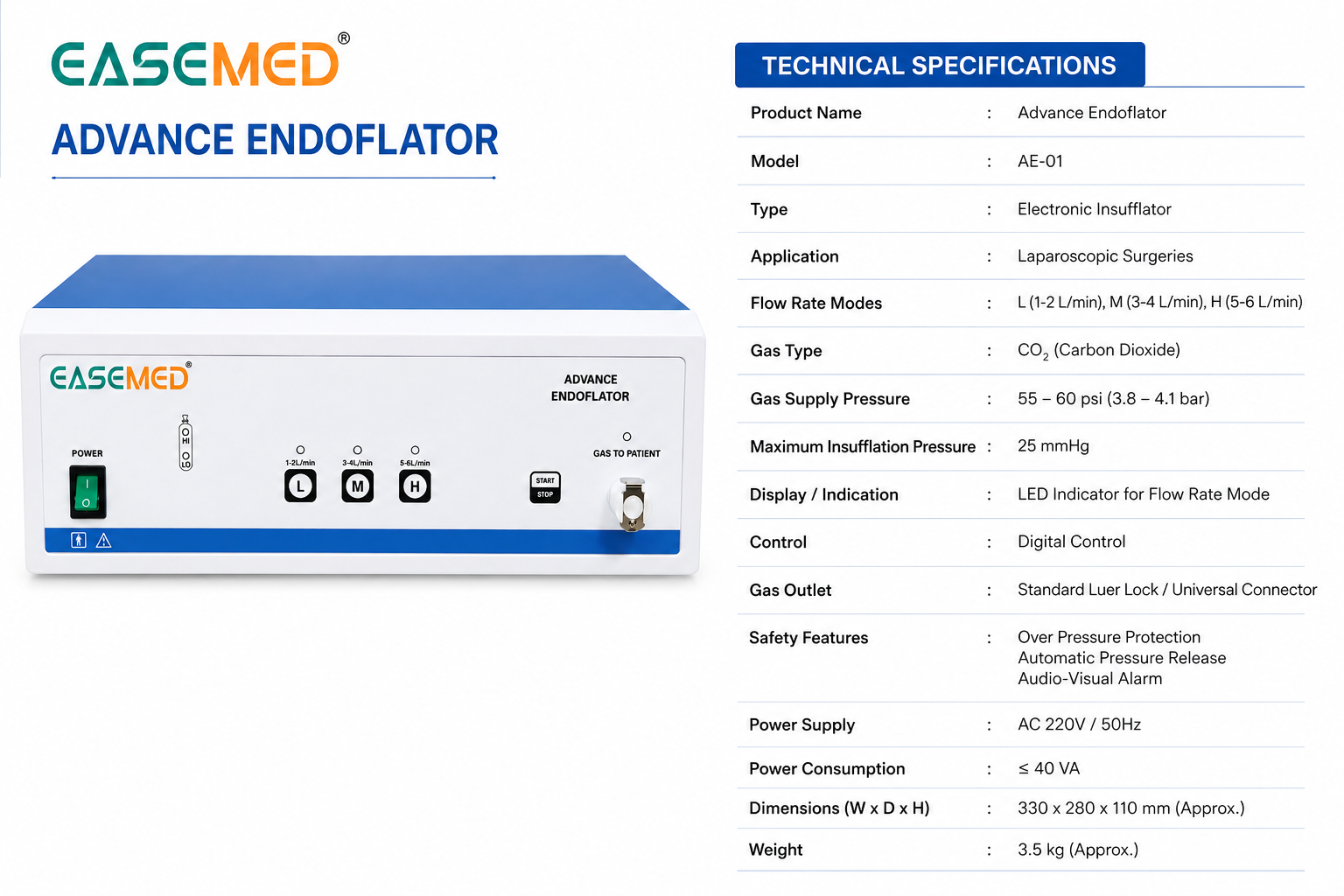

Technical Specifications
| Specification | Details |
|---|---|
| Product Name | EASEMED Advance Endoflator |
| Model | AE-01 |
| Device Type | Electronic CO₂ Insufflator |
| Technology | Microcontroller Controlled |
| Gas Type | Medical CO₂ |
| Gas Warmer | Inbuilt |
| Application | Laparoscopic & Endoscopic Surgery |
| Flow Modes | Low (1–2 L/min), Medium (3–4 L/min), High (5–6 L/min) |
| Maximum Pressure | 25 mmHg |
| Supply Pressure | 55–60 psi (3.8–4.1 bar) |
| Display | LED Indicators |
| Control | Digital |
| Gas Outlet | Standard Universal Luer Lock Connector |
| Safety | Over Pressure Protection, Automatic Pressure Release, Audio-Visual Alarm |
| Input Power | AC 220V / 50Hz |
| Power Consumption | ≤40 VA |
| Dimensions | Approx. 330 × 280 × 110 mm |
| Weight | Approx. 3.5 kg |
Applications
- Laparoscopic Surgery
- General Surgery
- Gynecology
- Urology
- Endoscopic Vessel Harvesting
- Minimal Access Surgery
- Surgical Training Centers
- Hospitals & Operating Theatres
Product Highlights
- ✔ Inbuilt CO₂ Gas Warmer
- ✔ Microcontroller Controlled System
- ✔ Stable Pressure Monitoring
- ✔ 3 Adjustable Flow Modes
- ✔ Universal CO₂ Compatibility
- ✔ Digital Operation
- ✔ Automatic Pressure Release
- ✔ Audio & Visual Alarm
- ✔ Compact & Lightweight Design
- ✔ Reliable Continuous Performance
- ✔ Easy Installation
- ✔ User-Friendly Controls
Standard Accessories Included
- EASEMED Advance Endoflator Unit
- Medical CO₂ Gas Hose
- Patient Gas Delivery Tube
- Universal Luer Lock Connector
- Power Cable
- User Manual
- Warranty Card

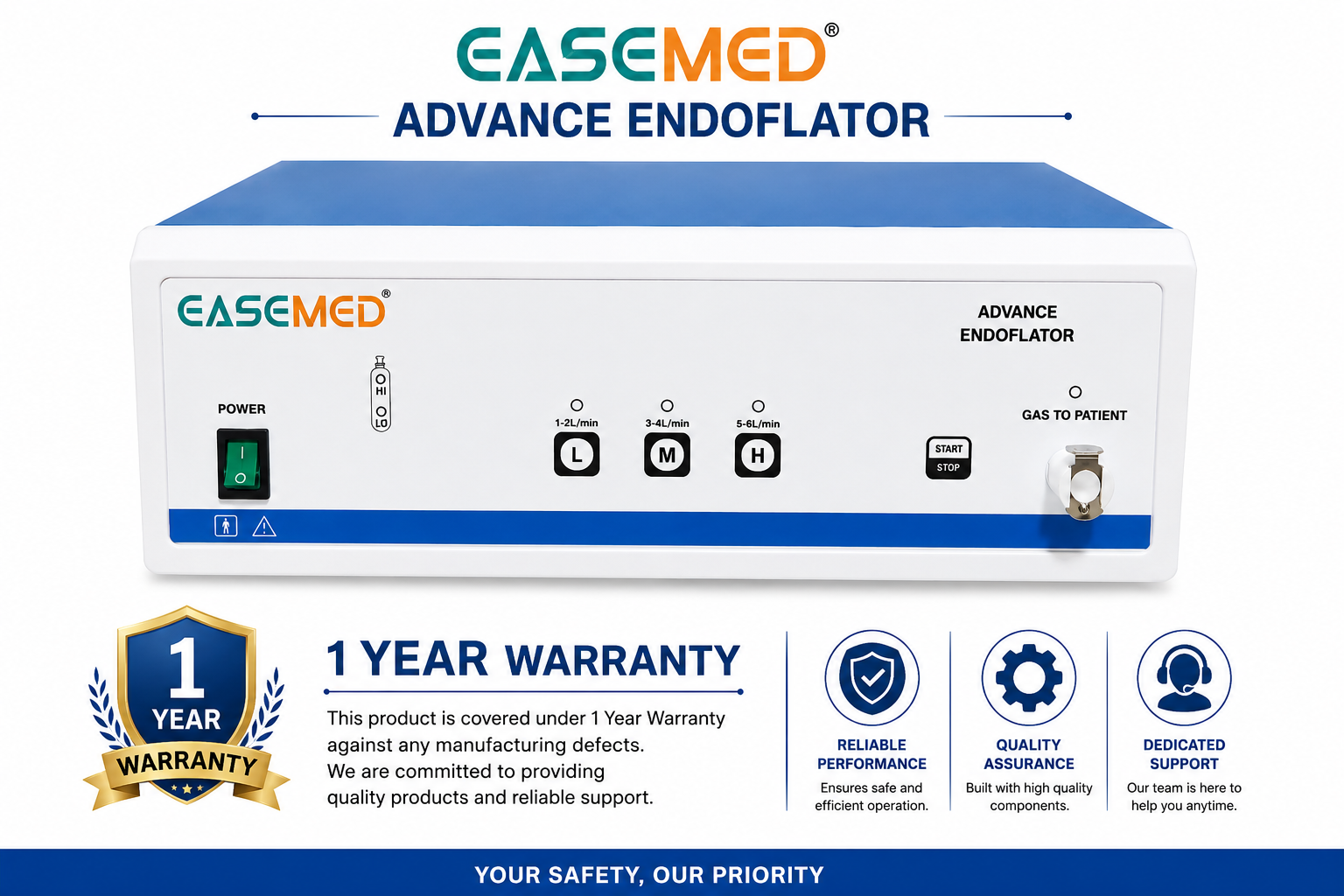

Warranty
1 Year Manufacturer Warranty
This product is covered by a 1-Year Manufacturer Warranty against manufacturing defects under normal operating conditions.
The warranty includes:
- Manufacturing defect coverage
- Technical support
- Service assistance
- Genuine replacement parts (where applicable)
