EASEMED Smart-4 400W Electrosurgical Generator | Microcontroller Monopolar & Bipolar ESU
EASEMED Smart-4 400W Electrosurgical Generator | Microcontroller Monopolar & Bipolar ESU
Couldn't load pickup availability

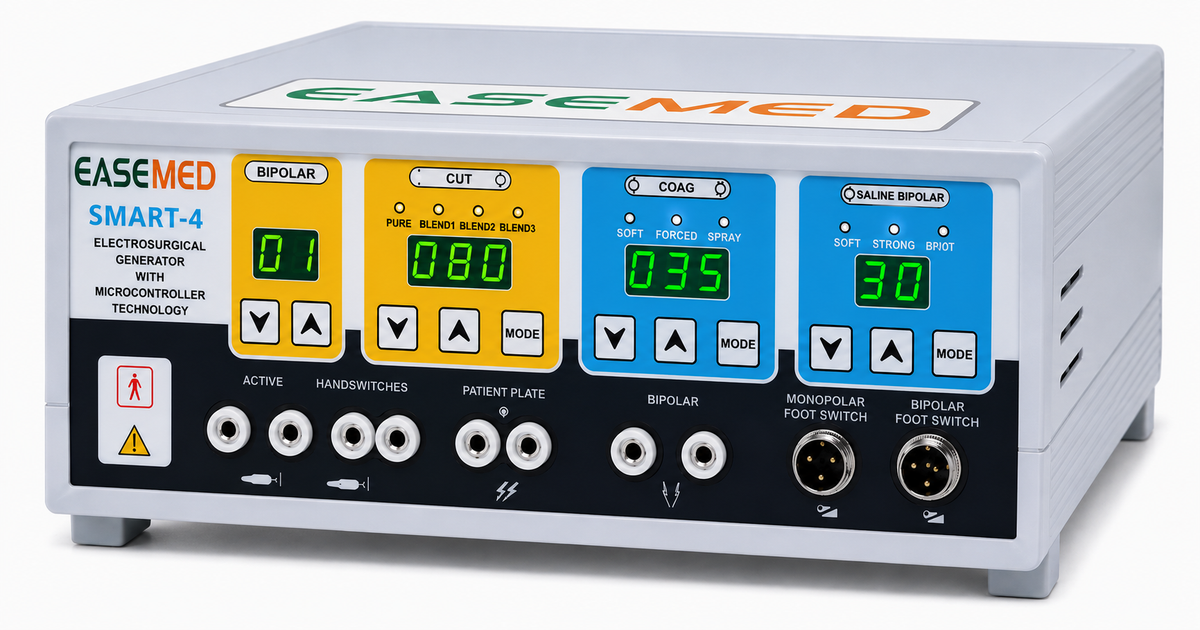

EASEMED SMART-4 Electrosurgical Generator
The EASEMED SMART-4 Electrosurgical Generator is an advanced 400W microcontroller-based Electrosurgical Unit (ESU) designed for precision cutting, coagulation, bipolar surgery, and saline bipolar applications. Built for modern operating rooms, it provides reliable energy delivery, advanced safety monitoring, and user-friendly digital controls for a wide range of surgical specialties.
Featuring multiple monopolar and bipolar modes, digital power adjustment, patient plate monitoring, overload protection, and compatibility with hand switches and dual foot switches, the SMART-4 ensures consistent surgical performance with enhanced safety and efficiency.
Its compact design, bright LED display, and intelligent microcontroller technology make it an excellent choice for hospitals, day-care surgical centers, and specialty clinics.
Product Highlights
- Advanced Microcontroller-Based Technology
- Maximum 400W Monopolar Output
- Monopolar, Bipolar & Saline Bipolar Modes
- Pure Cut, Blend 1, Blend 2 & Blend 3 Modes
- Soft, Forced & Spray Coagulation
- Digital 4-Digit LED Display
- Precise Power Adjustment
- Patient Plate Monitoring System
- Short Circuit Protection
- Output Overload Protection
- System Error Alarm
- Dual Foot Switch Connectivity
- Hand Switch Compatible
- Compact Medical-Grade Design
- Reliable Continuous Surgical Performance

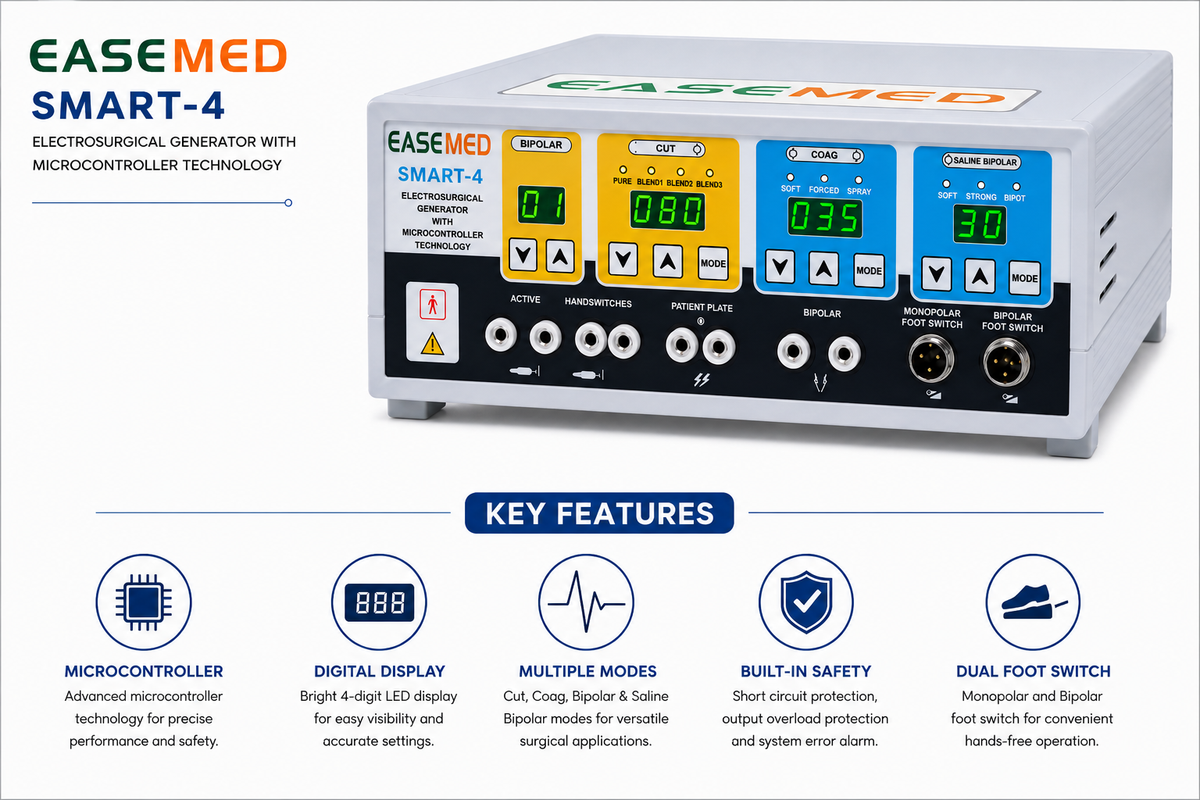

Key Features
- Microcontroller Technology for precise energy delivery.
- 400W High Power Output for demanding surgical procedures.
- Multiple Cutting & Coagulation Modes for versatile applications.
- Monopolar, Bipolar & Saline Bipolar Operation.
- Bright Digital LED Display for easy parameter monitoring.
- Built-in Safety Features including patient plate monitoring.
- Dual Foot Switch Support for convenient hands-free operation.
- Easy-to-use Interface for accurate surgical control.

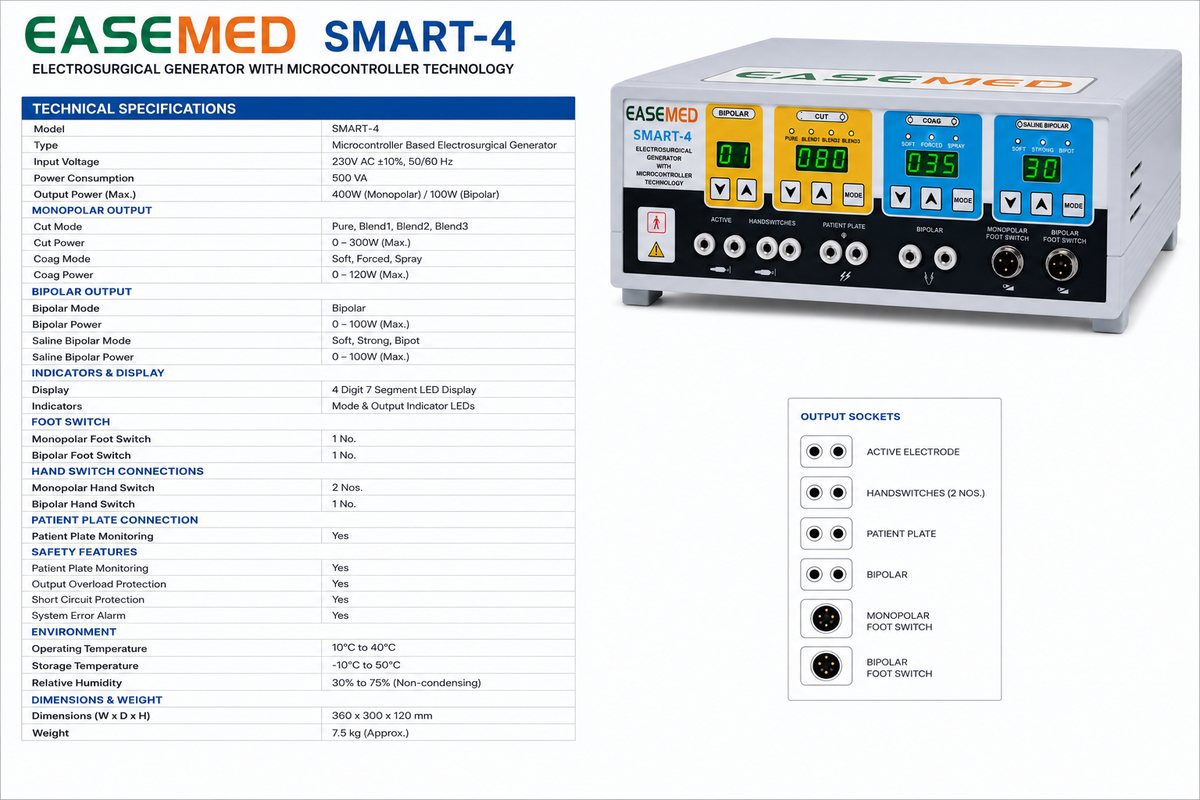

Technical Specifications
| Specification | Details |
|---|---|
| Product Name | EASEMED SMART-4 Electrosurgical Generator |
| Model | SMART-4 |
| Technology | Microcontroller Based |
| Input Voltage | 230V AC ±10%, 50/60Hz |
| Power Consumption | 500 VA |
| Maximum Output | 400W (Monopolar), 100W (Bipolar) |
| Display | 4-Digit 7 Segment LED |
| Monopolar Modes | Pure, Blend 1, Blend 2, Blend 3 |
| Coagulation Modes | Soft, Forced, Spray |
| Bipolar Modes | Bipolar & Saline Bipolar |
| Patient Plate Monitoring | Yes |
| Output Protection | Yes |
| Short Circuit Protection | Yes |
| System Error Alarm | Yes |
| Operating Temperature | 10°C to 40°C |
| Storage Temperature | -10°C to 50°C |
| Relative Humidity | 30%–75% |
| Dimensions | 290 × 105 × 260 mm |
| Weight | Approx. 4 kg |
Applications
Ideal for:
- General Surgery
- Laparoscopic Surgery
- Gynecology
- Urology
- ENT Surgery
- Plastic Surgery
- Gastrointestinal Surgery
- Oncology Procedures
- Day Care Surgical Centers
- Hospitals & Medical Colleges
Standard Accessories Included
- Chuck Handle with Autoclavable Electrodes
- Bipolar Forceps with Autoclavable Cable
- Monopolar / Bipolar Foot Switch
- Disposable Hand Switch Pencil
- Patient Plate with Cable

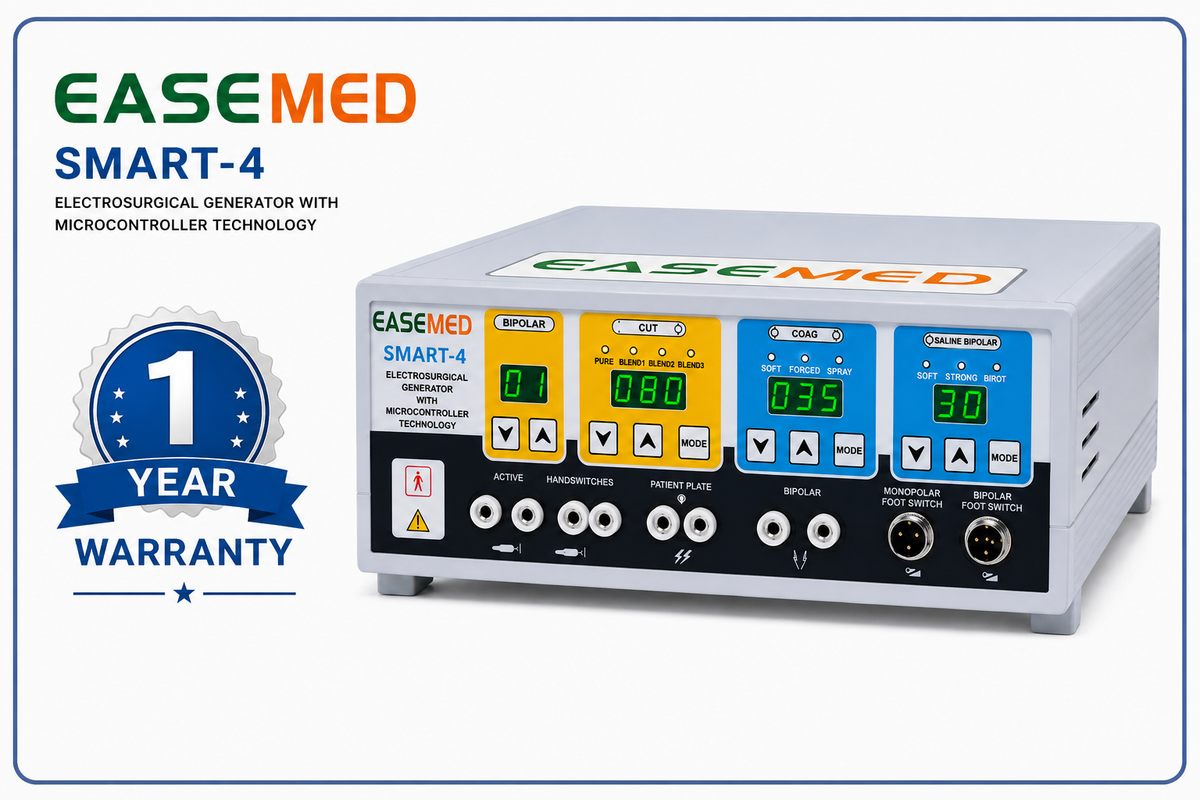

Warranty
1 Year Manufacturer Warranty
The EASEMED SMART-4 Electrosurgical Generator comes with a 1-Year Manufacturer Warranty against manufacturing defects under normal operating conditions.
Warranty Includes
- Manufacturing defects
- Technical support
- Genuine replacement parts (if required)
- Service assistance during warranty period
Warranty Excludes
- Physical or accidental damage
- Damage due to misuse or improper installation
- Unauthorized repairs or modifications
- Consumable accessories
